Railroad Scales

For use in factory plants, coal mines, refineries, scrapyards, hazardous waste facilities, and everything in between, AWT Scale provides superior-quality railroad scales from the most trusted names in the industry. We offer cost-effective railroad track scales that allow for your choice of in-motion or static weighing, or both. These railroad scales weigh train cars with precise readings for checkweighing, record keeping, and process monitoring. Made from established manufacturers, such as Systems Associates Inc., Rice Lake, and Avery Weigh Tronix, these railroad track scales are made from heavy-duty materials and advanced technology for consistent and dependable use.

Avery Weigh Tronix WEIGHLINE Railroad Scales

A new breed of railroad scales the Avery Weigh-Tronix Weighline is a rugged and reliable railroad track scale that consists of a series of 5’10” rail sections specially prepared and instrumented with strain gauges. Each section of rail is designed to be a weighbridge for a single wheel.

Even though the Weighline is not currently certified as legal-for-trade, it will consistently and accurately weigh. It provides more than adequate accuracy for checkweighing, process monitoring, record keeping and general safety concerns.

Unlike conventional track scales, Weighline installs in a few hours by replacing sections of existing rail and ties. There is no concrete to pour or pits to excavate as in traditional track scales – the scale is mounted on existing ballast and ties.

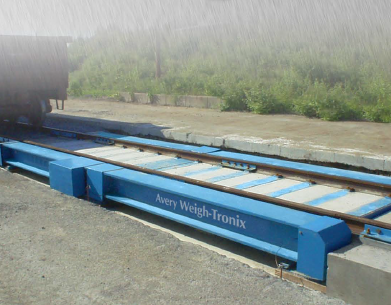

Avery Weigh Tronix RAILWEIGHT Railroad Track Scale

Our railroad scales allow in-motion weighing of rail trucks and cars while eliminating uncertainties associated with volumetric control methods and variable tare weights.

They are extremely robust and durable for use in virtually any business environment where rail systems are frequently used: recycling and scrap yards, chemical plants, grain elevators, transfer yards, cement plants, hazardous waste facilities, coal mines, refineries, utilities, etc

Rice Lake Survivor Model PL Rail Scales

SURVIVOR railroad track scales incorporate Rice Lake’s best-in-class weighbridge design to create a rugged, accurate heavy duty weighing system.

Used in static weighing operations, the SURVIVOR RT Pit Type railroad track scale and the SURVIVOR PL Modular Type railroad track scale excel in high-accuracy, legal-for-trade weighing and meet AREMA and Cooper E-80 design specifications.

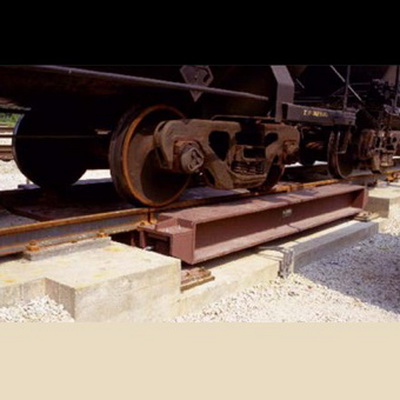

Systems Associates, Inc NP SERIES Railcar Weighbridges

The NP Series weighbridge is a very cost effective solution to your railcar weighing application.

Three standard 12′-6″, 20′-0″ & 26′-0″ weighbridges provide the flexibility to efficiently accommodate both in-motion and static weighing.

Coupled-in-motion (CIM) systems utilize a single NP1260 weighbridge, uncoupled-in-motion (UCIM) systems are typically handled with either an NP2000 or an NP2600 weighbridge and static systems use any pair of these weighbridges.
